CIVIL • ROAD PROFILING • INCLINED CONVEYORS
Belts for road-profiling machines and inclined material handling, specified by base-belt construction, cleat layout and joint.
Profile drawings show differences in rib layout and pocket shape. Final selection requires the specified dimensions, base belt and machine clearances.

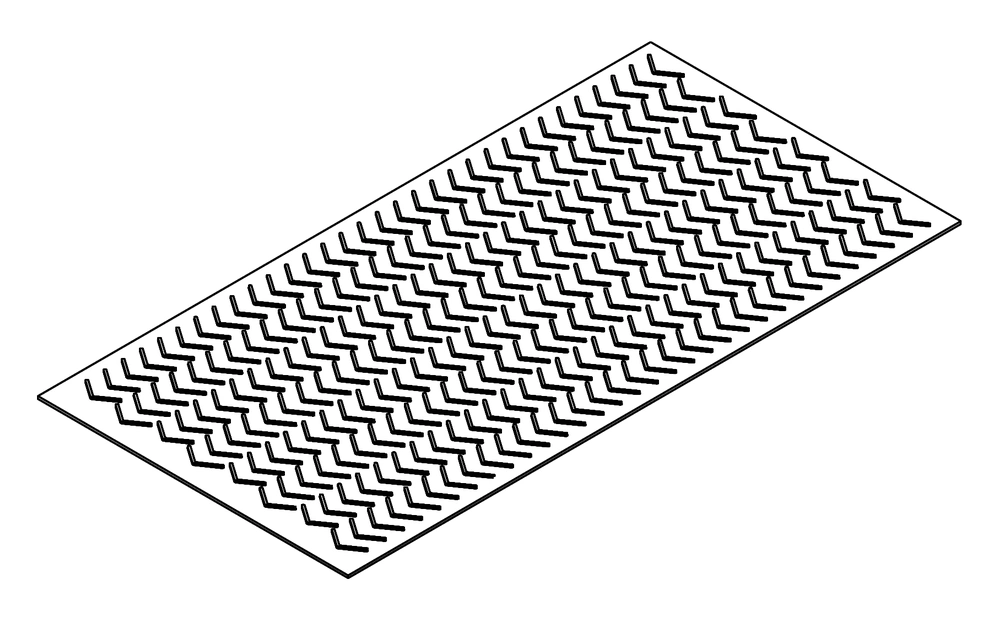

Separated V ribs with gaps between the rows.

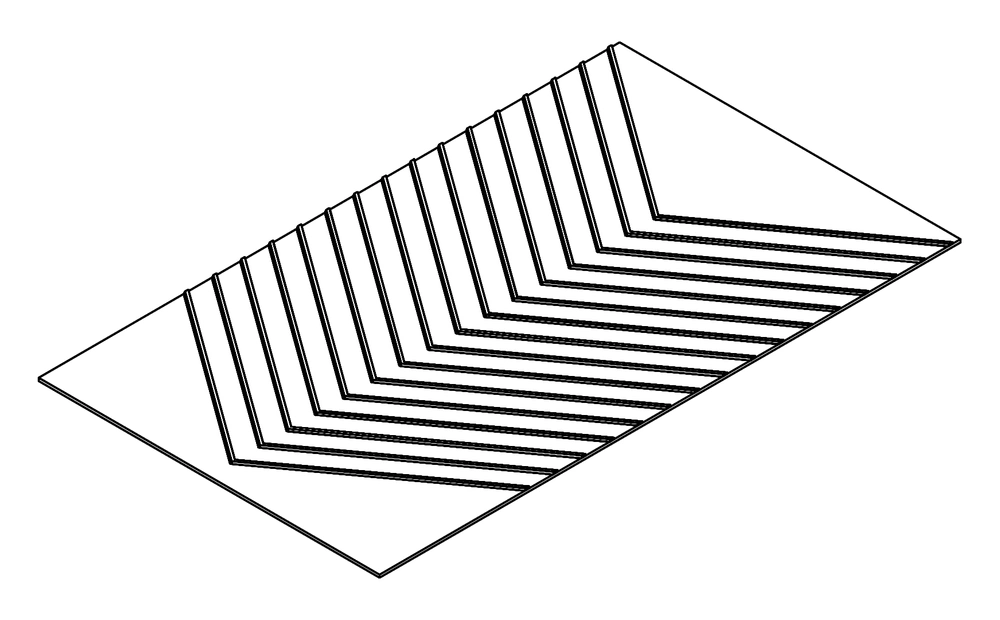

A continuous V across the profiled width.

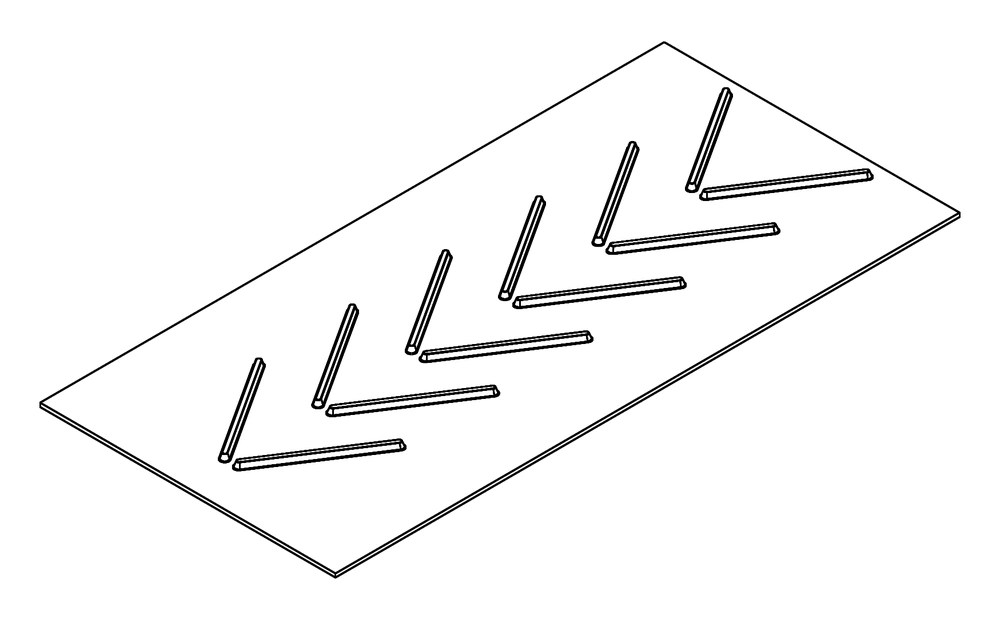

A centre opening divides each chevron.

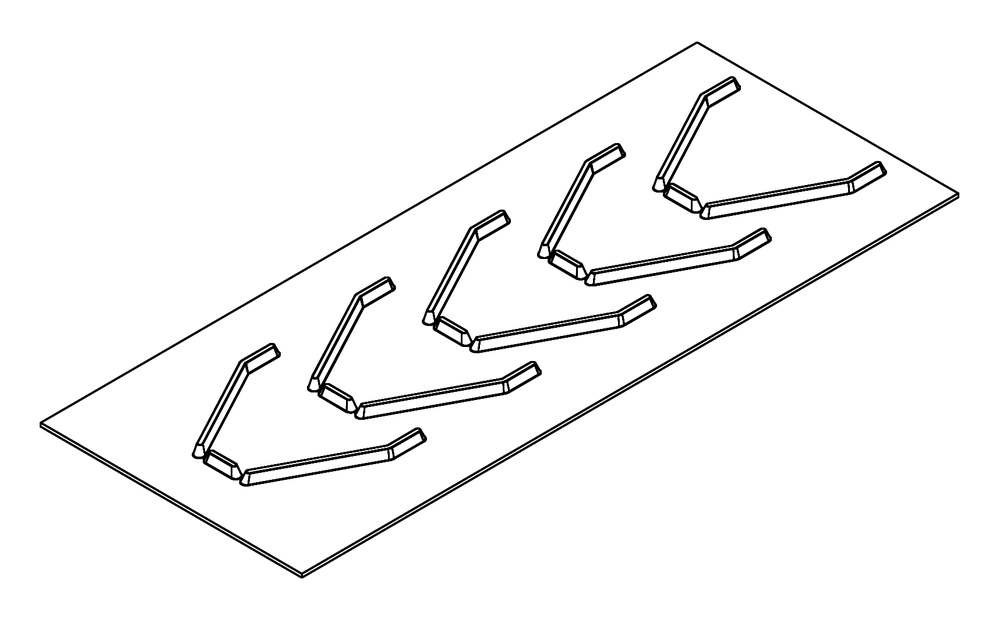

Separate ribs form a pocket-shaped pattern.

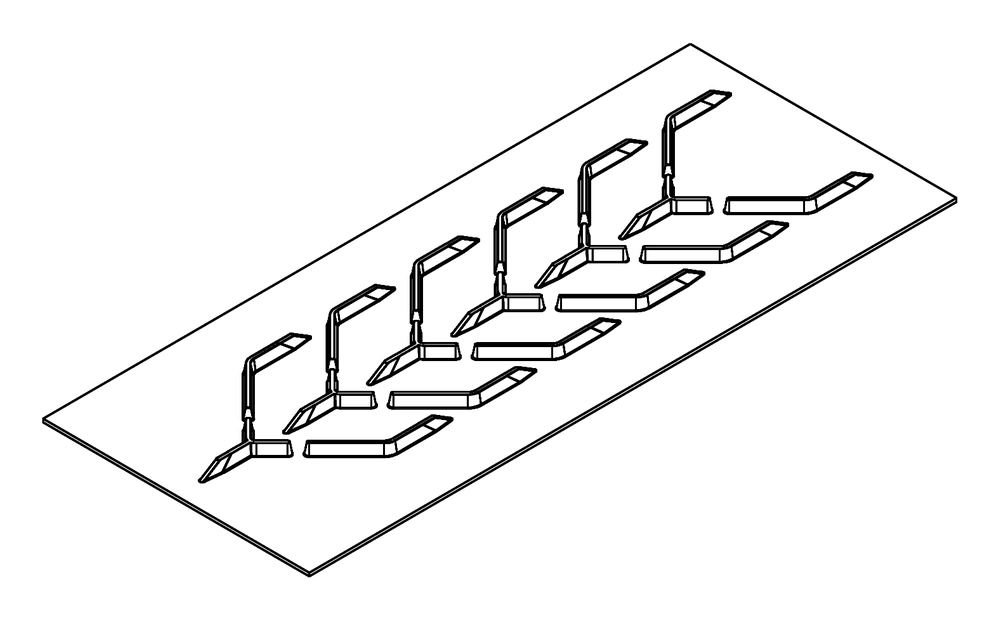

Branched ribs with interruptions in the pattern.

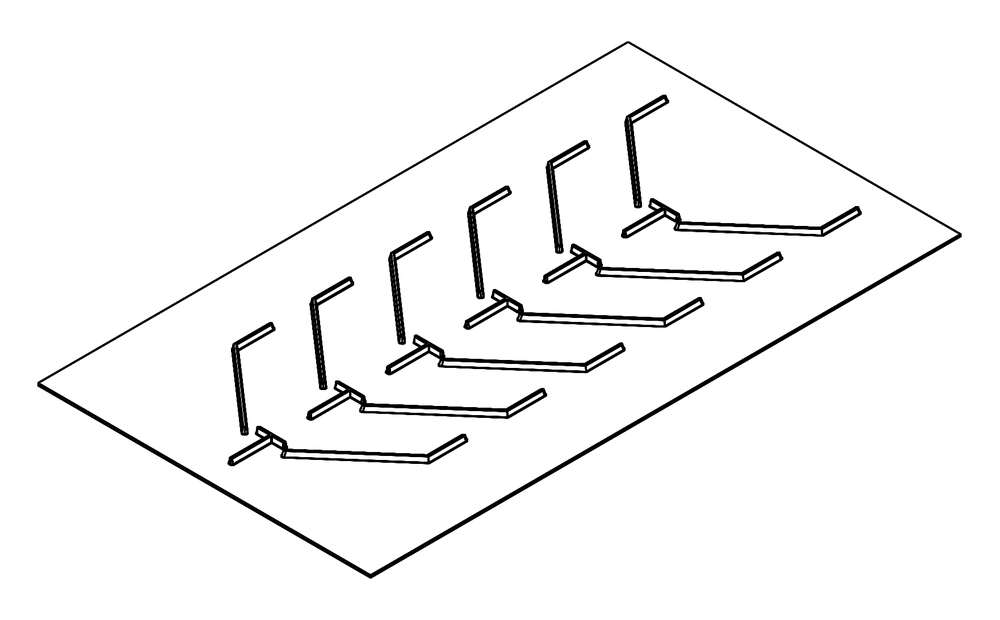

Interrupted ribs and transverse centre elements.
Pattern, height and pitch influence how material is retained on the incline and released at discharge. State the material, lump size, moisture and conveyor angle. A taller cleat is not automatically a better replacement.
The carcass, cover grade, cover thickness and splice still carry the loading and bending requirements. A pattern match alone does not establish the correct replacement belt.
Record the clear strip along each edge and any centre gap. These dimensions need to suit the side sealing and the machine’s supports; do not assume a full-width pattern will fit.
Moulded profiles and separately attached cleats are different constructions. Agree the profile drawing, attachment method, splice zone and joint layout for the selected belt.
CIVIL & ROADWORKS
Replacement specifications include the machine identification, conveyor position, base-belt construction, cleat pattern and joint.
State the machine make, model and serial number, then identify the pickup, transfer or discharge conveyor. A machine can use different belts in different positions.
Include the milled material, normal operating conditions and whether the problem is cover wear, cleat loss, edge damage, mistracking or joint failure. Cold-milled pavement and hot-asphalt production are not the same temperature application.
Record the pulley diameters, return-roller arrangement and available clearance around the profile. Check the belt path through folding, slewing or other moving sections where fitted.
Confirm the part or drawing reference, finished length, joint type, installation access and machine availability. Inspect guide and support rollers and the transfer area before fitting the new belt.
| Detail | Include |
|---|---|
| Machine identification | Make, model, serial number, part reference and exact conveyor position. |
| Belt dimensions | Width, finished endless length or open length, thickness and existing designation. |
| Cleat layout | Pattern, height, pitch, profiled width, left/right clear edges and belt travel direction. |
| Joint and machine clearances | Vulcanised, welded or mechanical joint as applicable; splice zone, pulleys, support and return path. |
| Evidence | Overall machine/conveyor view, belt marking, plan and side views of cleats, joint and damaged areas. |
A current designation, photograph or drawing helps identify the replacement. Unknown measurements can remain blank.
