RUBBER GASKETS

Flat ring.
Full face. Custom.

Rubber gaskets supplied and fabricated to recognised flange standards or your custom requirements.

Natural, Nitrile and EPDM Rubber for low and medium pressure services including water, slurry and air.

Request a gasket quote Brochure PDF

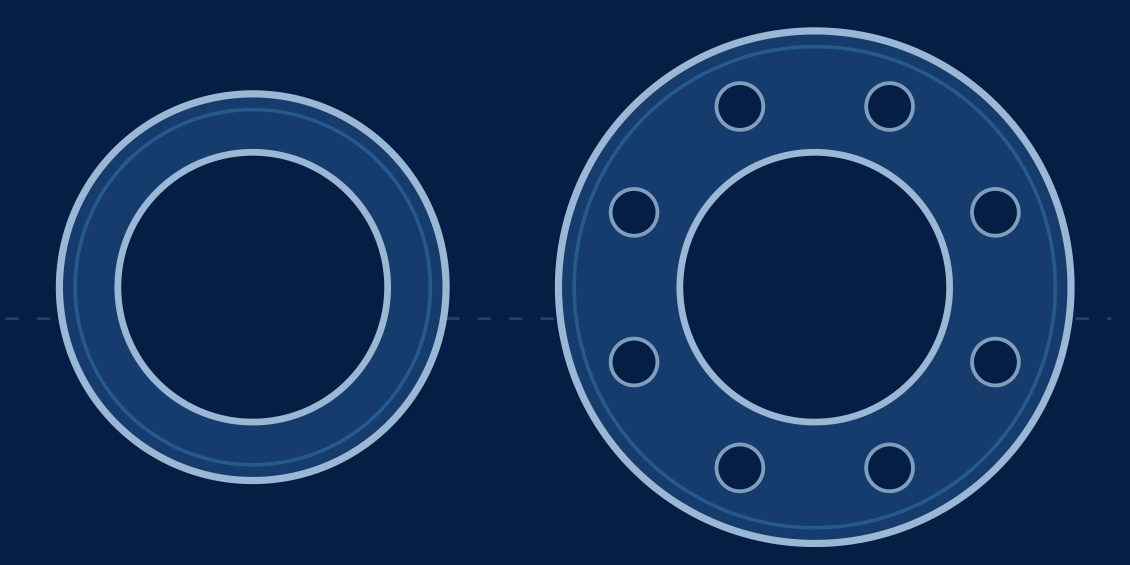

Flat ring and full face gasket profile illustrations from the approved brochure
FLAT RING FULL FACE
Profile illustrations only · not to scale
3–12 mm Typical thickness range
40–60 duro Typical Shore A hardness
Water · Slurry · Air Low & medium pressure services

PROFILES & CUSTOM MANUFACTURE

Standard profiles.
Your specific requirements.

Superior Conveyors supplies and fabricates flat ring and full face rubber gaskets suitable for a wide range of industrial sealing applications.

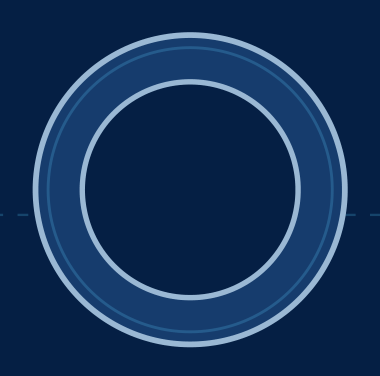

Flat ring profile illustration, not to scale
01 / FLAT RING

Flat ring gaskets

Specify the flange standard or provide the required inside diameter, outside diameter and thickness.

Enquire about flat ring

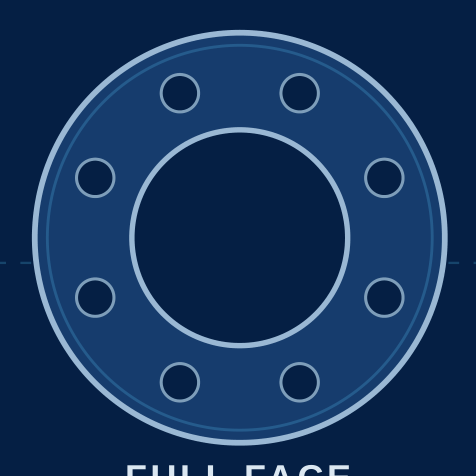

Full face profile illustration, not to scale
02 / FULL FACE

Full face gaskets

Include the flange standard, size and any known bolt-hole or pitch circle diameter details.

Enquire about full face

CUSTOM MANUFACTURE

Not a standard profile?

For gaskets outside the listed specifications, we can manufacture custom sizes, non-standard profiles including square, rectangular and radius corner, and special drilling patterns when the pitch circle diameter (PCD) or number of holes differ.

Send your drawing or requirements

MATERIALS & FLANGE STANDARDS

The range at a glance.

Gaskets can be manufactured to the following flange standards or custom requirements.

Flange standards

Flange standards listed in the gasket brochure
Standard Designation
AS 4087 PN10, PN16
AS 2129 Tables D and E
BS 3063 —
BS 4865 —
ANSI B16.21 Class 150
DIN 2690 —

Specify the required standard and designation with your enquiry. No flange dimensions are automatically inferred.

Materials & listed sizes

Material outside diameter limits listed in the brochure
Material Outside diameter
Natural Rubber Up to 2,000 mm OD
Nitrile Rubber
– Nylon fabric insertion– Cotton fabric insertion
 Up to 1,000 mm OD
EPDM Rubber Up to 1,000 mm OD

OD = outside diameter. Fabric insertion options are listed under Nitrile Rubber.

Confirm the application before supply.

Listed sizes and typical ranges are not a live stock list or an automatic service rating. Include your operating conditions and any special requirements for review.

GASKET ENQUIRIES

Send the details.
We’ll review the requirement.

Select a profile, enter the information you know and attach a drawing or photo. Leave unknown measurements blank.

01 Your gasket

One gasket design per enquiry. Fields marked * are required.

Flat ring selected. Unknown dimensions can stay blank.

qty
duro
Known dimensions Optional · millimetres unless shown

Enter drawing or measured values only. No dimensions are generated from the standard or nominal size. For custom openings or non-circular drilling, attach a drawing or describe them in Notes.

mm
mm
mm
mm
mm
mm
mm
count
mm

Requirements outside the listed size, thickness or hardness ranges can be submitted for custom review. They are not automatically approved.

02 Contact & application

Operating conditions are recorded for review, not checked against an automatic pressure or temperature rating.

03 Drawings & supporting information

Up to 5 PDF, JPG, PNG or WebP files. Maximum 5 MB per file and 15 MB total. Export CAD drawings to PDF and convert HEIC photos before attaching. Files are not published on the website.

Superior Conveyors uses the details and attachments you submit to assess your enquiry, contact you and arrange any resulting supply or work. Our Privacy Policy explains how information is shared and retained, and how to request access, correction or make a complaint. Submitting an enquiry does not subscribe you to marketing.

Check the details before sending.

OTHER MANUFACTURED PRODUCTS

Beyond gaskets.

Rubber strips, mudguards, load mats, rubber chutes, straight socks and gob socks.

Rubber strips Mudguards Load mats Rubber chutes Straight socks Gob socks
Discuss a rubber product Download gasket brochure

ENQUIRY GUIDANCE

Before you send.

Do I need every dimension?

No. Send a known size, part number, drawing, photograph or a useful description of what you need. Leave unknown values blank and note the information that needs confirming.

Can I request custom sizes or drilling?

Yes. Include a labelled drawing for custom sizes, square, rectangular or radius-corner profiles, or special drilling where the PCD or number of holes differ.

Does a flange designation confirm suitability?

This form records your requested designation. It does not calculate dimensions, establish a pressure rating or approve material selection. The specification and operating conditions require review before supply.

Does submitting this form place an order?

No. It sends an enquiry for review and quotation. Price, lead time and the final supply specification must be agreed separately.
