TRAILING-TIP CONFIGURATION

Single Direction Secondary

Residual cleaning directly beneath the head pulley, with trailing tungsten tips on individual cushions.

Enquire about this cleaner Brochure
Single Direction Secondary beneath the head pulley, with the tip row, cushions and support pole visible.
Single Direction Secondary beneath the head pulley, with the tip row, cushions and support pole visible.

Remove the remaining fines

The primary removes bulk carryback; the Single Direction Secondary removes the remaining fines. Position the tips directly below the head pulley, inside the head chute, so removed material drops back into the product stream.

Tip and cushion response

The trailing tip arrangement follows normal belt travel. Each cushion must move freely and support its tip at the correct angle. Uneven tip heights, hardened cushions or a skewed pole prevent consistent cleaning.

Spray-assisted cleaning

Confirm nozzle arrangements, water supply, filtration and drainage for a spray-pole installation.

View the trailing-tip construction principle

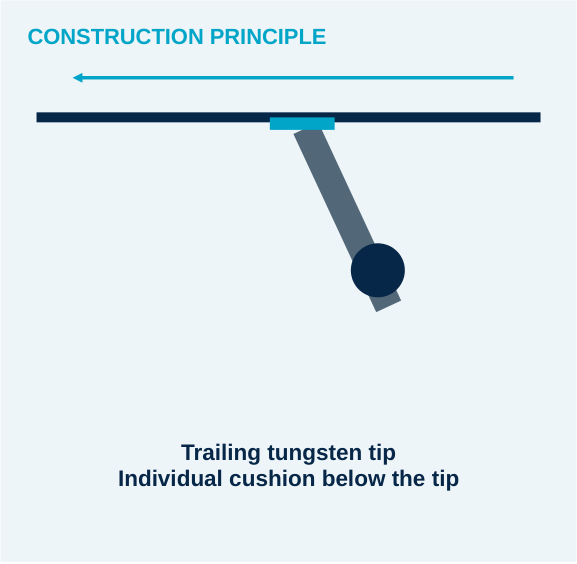

Trailing tungsten tip and individual cushion: schematic construction principle.
Construction principle only. Use the installation drawing for the selected assembly.

CLEANER SUPPLY & SITE SUPPORT

Send the installation details

Include the conveyor, belt and existing cleaner details, together with photos or a drawing.
