BELT CLEANING SYSTEMS

Return ploughs

Remove loose material from the inner return-belt face before it enters a tail, bend or take-up pulley.

Enquire about this cleaner Brochure
Torsion V-plough installation with support poles and suspension components visible.
Torsion V-plough installation with support poles and suspension components visible.

V-plough return cleaners

Floating and torsion arrangements

A floating V-plough follows the inner return-belt face through its support linkage and weight. A torsion arrangement uses preloaded suspension components. Both need sound mounts, restraints and free movement.

Discharge and belt protection

The V directs material off both edges. Keep those paths clear, check the nose and side blades, and position the plough upstream of the pulley entry. It protects the inner belt face; it does not replace carry-side cleaning.

Floating V-plough enquiry Torsion V-plough enquiry
V-plough installation showing support poles, mounting plates and restraint chain.
V-plough installation showing support poles, mounting plates and restraint chain.

CONTROLLED ONE-SIDE DISCHARGE

Diagonal return ploughs

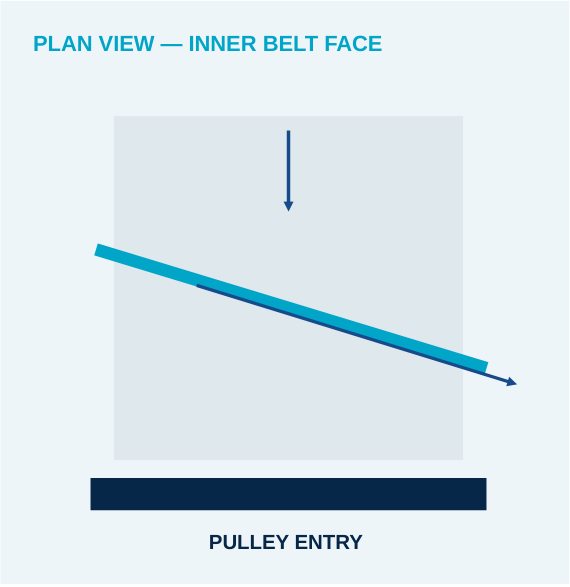

Diagonal blade directing material to one nominated side before pulley entry.
Plan view of the inner belt face. Concept only.

Where a diagonal is useful

A diagonal blade pushes stray material to a nominated side before the belt reaches a pulley. Use it where the layout favours one-sided discharge or a V-plough cannot discharge clear of the structure.

Specify for the actual travel

Single-direction and reversing arrangements are different selections. Check the blade mounting and pivot response for the intended movement. Do not assume a diagonal cleaner will operate safely both ways.

Inspect the whole plough

Check the blade, nose or leading edge, linkage, restraints and clearance through the full movement range. A damaged restraint or seized suspension needs attention before it allows the plough to contact the pulley.

Diagonal plough enquiry
Return-plough selection
Selection V-plough Diagonal
Material path Both belt edges One nominated side
Preferred position Inner return face, before pulley entry Inner return face, before pulley entry
Installation check Clearance and material drop on both sides Clearance on the selected discharge side
Replacement Identify floating or torsion construction Identify pivot, suspension and blade mounting

CLEANER SUPPLY & SITE SUPPORT

Send the installation details

Include the conveyor, belt and existing cleaner details, together with photos or a drawing.
